ClusterSequenceArea Class Reference

General class for user to obtain ClusterSequence with additional area information. More...

#include <ClusterSequenceArea.hh>

Inheritance diagram for ClusterSequenceArea:

[legend]

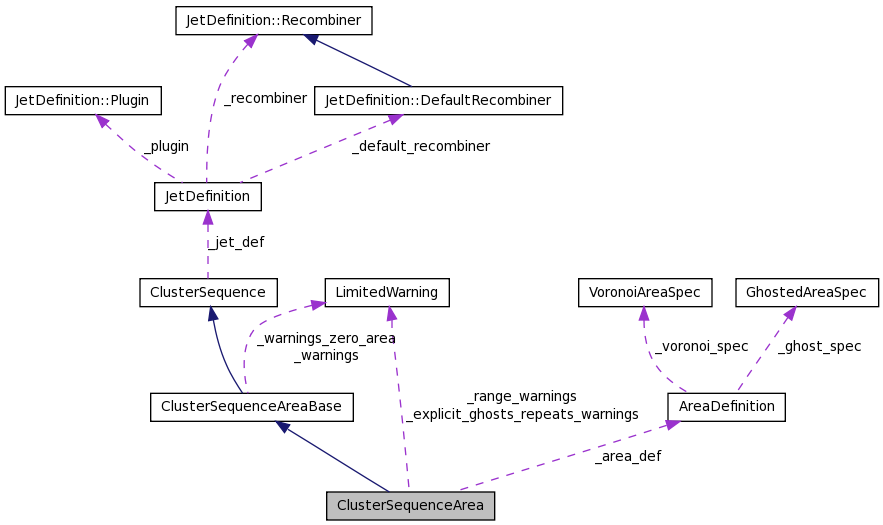

Collaboration diagram for ClusterSequenceArea:

[legend]

List of all members.

Public Member Functions
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const AreaDefinition &area_def_in)
	main constructor
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &ghost_spec)
	constructor with a GhostedAreaSpec
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const VoronoiAreaSpec &voronoi_spec)
	constructor with a VoronoiAreaSpec
const AreaDefinition &	area_def () const
	return a reference to the area definition
virtual double	area (const PseudoJet &jet) const
	return the area associated with the given jet
virtual double	area_error (const PseudoJet &jet) const
	return the error (uncertainty) associated with the determination of the area of this jet
virtual PseudoJet	area_4vector (const PseudoJet &jet) const
	return the 4-vector area
virtual double	empty_area (const RangeDefinition &range) const
	return the total area, in the given rap-phi range, that is free of jets
virtual double	n_empty_jets (const RangeDefinition &range) const
	return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.
virtual bool	is_pure_ghost (const PseudoJet &jet) const
	true if a jet is made exclusively of ghosts
virtual bool	has_explicit_ghosts () const
	true if this ClusterSequence has explicit ghosts
virtual void	get_median_rho_and_sigma (const std::vector< PseudoJet > &all_jets, const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma, double &mean_area, bool all_are_incl=false) const
	overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.
virtual void	get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma) const
	overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.
virtual void	get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma, double &mean_area) const
	overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the multi-argument version above, we have to override the 5-argument version too.
virtual void	parabolic_pt_per_unit_area (double &a, double &b, const RangeDefinition &range, double exclude_above=-1.0, bool use_area_4vector=false) const
	overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.
Private Member Functions
void	_warn_if_range_unsuitable (const RangeDefinition &range) const
	print a warning if the range is unsuitable for the current calculation of the area (e.g.
template<class L >
void	initialize_and_run_cswa (const std::vector< L > &pseudojets, const JetDefinition &jet_def)
Private Attributes
std::auto_ptr < ClusterSequenceAreaBase >	_area_base
AreaDefinition	_area_def
Static Private Attributes
static LimitedWarning	_range_warnings
static LimitedWarning	_explicit_ghosts_repeats_warnings

Detailed Description

General class for user to obtain ClusterSequence with additional area information.

Based on the area_def, it automatically dispatches the work to the appropriate actual ClusterSequenceAreaBase-derived-class to do the real work.

Definition at line 49 of file ClusterSequenceArea.hh.

Constructor & Destructor Documentation

template<class L >

ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const AreaDefinition &	area_def_in
	)			`[inline]`

main constructor

Definition at line 53 of file ClusterSequenceArea.hh.

References initialize_and_run_cswa().

00055                                                : _area_def(area_def_in) {
00056     initialize_and_run_cswa(pseudojets, jet_def);
00057   }

template<class L >

ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const GhostedAreaSpec &	ghost_spec
	)			`[inline]`

constructor with a GhostedAreaSpec

Definition at line 61 of file ClusterSequenceArea.hh.

References initialize_and_run_cswa().

00063                                                 : _area_def(ghost_spec){
00064     initialize_and_run_cswa(pseudojets, jet_def);
00065   }

template<class L >

ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const VoronoiAreaSpec &	voronoi_spec
	)			`[inline]`

constructor with a VoronoiAreaSpec

Definition at line 69 of file ClusterSequenceArea.hh.

References initialize_and_run_cswa().

00071                                                   : _area_def(voronoi_spec){
00072     initialize_and_run_cswa(pseudojets, jet_def);
00073   }

Member Function Documentation

void ClusterSequenceArea::_warn_if_range_unsuitable ( const RangeDefinition & range ) const [private]

print a warning if the range is unsuitable for the current calculation of the area (e.g.

because ghosts do not extend far enough).

Definition at line 11 of file ClusterSequenceArea.cc.

References _area_def, _range_warnings, AreaDefinition::area_type(), RangeDefinition::get_rap_limits(), GhostedAreaSpec::ghost_maxrap(), AreaDefinition::ghost_spec(), JetDefinition::jet_algorithm(), ClusterSequence::jet_def(), kt_algorithm, passive_area, JetDefinition::R(), voronoi_area, and LimitedWarning::warn().

Referenced by get_median_rho_and_sigma(), and parabolic_pt_per_unit_area().

00011                                                                                        {
00012   bool no_ghosts = (_area_def.area_type() == voronoi_area)
00013     || (_area_def.area_type() == passive_area
00014         && jet_def().jet_algorithm() == kt_algorithm);
00015   if (! no_ghosts) {
00016     double rapmin, rapmax;
00017     range.get_rap_limits(rapmin, rapmax);
00018     if (rapmin < -_area_def.ghost_spec().ghost_maxrap()+0.95*jet_def().R() ||
00019         rapmax >  _area_def.ghost_spec().ghost_maxrap()-0.95*jet_def().R()) {
00020       _range_warnings.warn("rapidity range for median (rho) extends beyond +-(ghost_maxrap - 0.95*R); this is likely to cause the results to be unreliable; safest option is to increase ghost_maxrap in the area definition");
00021     }
00022   }
00023 }

virtual double ClusterSequenceArea::area ( const PseudoJet & jet ) const [inline, virtual]

return the area associated with the given jet

Reimplemented from ClusterSequenceAreaBase.

Definition at line 80 of file ClusterSequenceArea.hh.

References _area_base.

00080                                                           {
00081     return _area_base->area(jet);}

virtual PseudoJet ClusterSequenceArea::area_4vector ( const PseudoJet & jet ) const [inline, virtual]

return the 4-vector area

Reimplemented from ClusterSequenceAreaBase.

Definition at line 89 of file ClusterSequenceArea.hh.

References _area_base.

00089                                                               {
00090     return _area_base->area_4vector(jet);}

const AreaDefinition& ClusterSequenceArea::area_def ( ) const [inline]

return a reference to the area definition

Definition at line 76 of file ClusterSequenceArea.hh.

References _area_def.

00076 {return _area_def;}

virtual double ClusterSequenceArea::area_error ( const PseudoJet & jet ) const [inline, virtual]

return the error (uncertainty) associated with the determination of the area of this jet

Reimplemented from ClusterSequenceAreaBase.

Definition at line 85 of file ClusterSequenceArea.hh.

References _area_base.

00085                                                           {
00086     return _area_base->area_error(jet);}

virtual double ClusterSequenceArea::empty_area ( const RangeDefinition & range ) const [inline, virtual]

return the total area, in the given rap-phi range, that is free of jets

Reimplemented from ClusterSequenceAreaBase.

Definition at line 105 of file ClusterSequenceArea.hh.

References _area_base.

00105                                                                  {
00106     return _area_base->empty_area(range);}

virtual void ClusterSequenceArea::get_median_rho_and_sigma	(	const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma,
		double &	mean_area
	)			const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the multi-argument version above, we have to override the 5-argument version too.

Reimplemented from ClusterSequenceAreaBase.

Definition at line 158 of file ClusterSequenceArea.hh.

References get_median_rho_and_sigma().

00161                                                                   {
00162     ClusterSequenceAreaBase::get_median_rho_and_sigma(range,use_area_4vector,
00163                                                       median,sigma, mean_area);
00164   }

virtual void ClusterSequenceArea::get_median_rho_and_sigma	(	const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma
	)			const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.

Reimplemented from ClusterSequenceAreaBase.

Definition at line 147 of file ClusterSequenceArea.hh.

References get_median_rho_and_sigma().

00149                                                                                {
00150     ClusterSequenceAreaBase::get_median_rho_and_sigma(range,use_area_4vector,
00151                                                       median,sigma);
00152   }

virtual void ClusterSequenceArea::get_median_rho_and_sigma	(	const std::vector< PseudoJet > &	all_jets,
		const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma,
		double &	mean_area,
		bool	all_are_incl = `false`
	)			const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from ClusterSequenceAreaBase.

Definition at line 131 of file ClusterSequenceArea.hh.

References _warn_if_range_unsuitable().

Referenced by get_median_rho_and_sigma().

00136                                                                          {
00137     _warn_if_range_unsuitable(range);
00138     ClusterSequenceAreaBase::get_median_rho_and_sigma(
00139                                  all_jets, range, use_area_4vector,
00140                                  median, sigma, mean_area, all_are_incl);
00141   }

virtual bool ClusterSequenceArea::has_explicit_ghosts ( ) const [inline, virtual]

true if this ClusterSequence has explicit ghosts

Reimplemented from ClusterSequenceAreaBase.

Definition at line 123 of file ClusterSequenceArea.hh.

References _area_base.

00123                                            {
00124     return _area_base->has_explicit_ghosts();
00125   }

template<class L >

void ClusterSequenceArea::initialize_and_run_cswa	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def
	)			`[inline, private]`

Definition at line 199 of file ClusterSequenceArea.hh.

References _area_base, _area_def, _explicit_ghosts_repeats_warnings, active_area, active_area_explicit_ghosts, AreaDefinition::area_type(), AreaDefinition::ghost_spec(), one_ghost_passive_area, passive_area, GhostedAreaSpec::repeat(), ClusterSequence::transfer_from_sequence(), voronoi_area, AreaDefinition::voronoi_spec(), and LimitedWarning::warn().

Referenced by ClusterSequenceArea().

00202  {
00203
00204   ClusterSequenceAreaBase * _area_base_ptr;
00205   switch(_area_def.area_type()) {
00206   case active_area:
00207     _area_base_ptr = new ClusterSequenceActiveArea(pseudojets,
00208                                                    jet_def,
00209                                                    _area_def.ghost_spec());
00210     break;
00211   case active_area_explicit_ghosts:
00212     if (_area_def.ghost_spec().repeat() != 1)
00213       _explicit_ghosts_repeats_warnings.warn("Requested active area with explicit ghosts with repeat != 1; only 1 set of ghosts will be used");
00214     _area_base_ptr = new ClusterSequenceActiveAreaExplicitGhosts(pseudojets,
00215                                                    jet_def,
00216                                                    _area_def.ghost_spec());
00217     break;
00218   case voronoi_area:
00219     _area_base_ptr = new ClusterSequenceVoronoiArea(pseudojets,
00220                                                    jet_def,
00221                                                    _area_def.voronoi_spec());
00222     break;
00223   case one_ghost_passive_area:
00224     _area_base_ptr = new ClusterSequence1GhostPassiveArea(pseudojets,
00225                                                     jet_def,
00226                                                     _area_def.ghost_spec());
00227     break;
00228   case passive_area:
00229     _area_base_ptr = new ClusterSequencePassiveArea(pseudojets,
00230                                                     jet_def,
00231                                                     _area_def.ghost_spec());
00232     break;
00233   default:
00234     std::cerr << "Error: unrecognized area_type in ClusterSequenceArea:"
00235               << _area_def.area_type() << std::endl;
00236     exit(-1);
00237   }
00238   // now copy across the information from the area base class
00239   _area_base = std::auto_ptr<ClusterSequenceAreaBase>(_area_base_ptr);
00240   transfer_from_sequence(*_area_base);
00241 }

virtual bool ClusterSequenceArea::is_pure_ghost ( const PseudoJet & jet ) const [inline, virtual]

true if a jet is made exclusively of ghosts

Reimplemented from ClusterSequenceAreaBase.

Definition at line 118 of file ClusterSequenceArea.hh.

References _area_base.

00118                                                           {
00119     return _area_base->is_pure_ghost(jet);
00120   }

virtual double ClusterSequenceArea::n_empty_jets ( const RangeDefinition & range ) const [inline, virtual]

return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.

For the local implementation we return empty_area/(0.55 pi R^2), based on measured properties of ghost jets with kt and cam. Note that the number returned is a double.

Reimplemented from ClusterSequenceAreaBase.

Definition at line 113 of file ClusterSequenceArea.hh.

References _area_base.

00113                                                                    {
00114     return _area_base->n_empty_jets(range);
00115   }

virtual void ClusterSequenceArea::parabolic_pt_per_unit_area	(	double &	a,
		double &	b,
		const RangeDefinition &	range,
		double	exclude_above = `-1.0`,
		bool	use_area_4vector = `false`
	)			const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from ClusterSequenceAreaBase.

Definition at line 170 of file ClusterSequenceArea.hh.

References _warn_if_range_unsuitable().

00173                                                                              {
00174     _warn_if_range_unsuitable(range);
00175     ClusterSequenceAreaBase::parabolic_pt_per_unit_area(
00176                                 a,b,range, exclude_above, use_area_4vector);
00177   }
