ClusterSequenceActiveAreaExplicitGhosts Class Reference

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity. More...

#include <ClusterSequenceActiveAreaExplicitGhosts.hh>

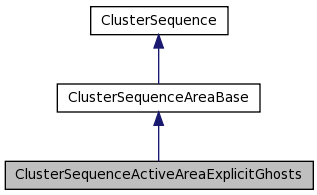

Inheritance diagram for ClusterSequenceActiveAreaExplicitGhosts:

[legend]

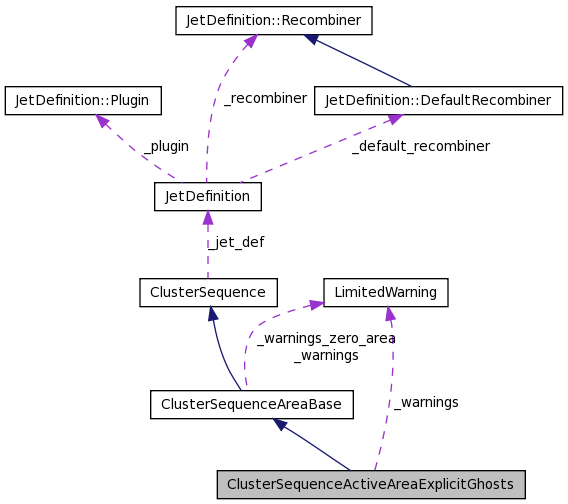

Collaboration diagram for ClusterSequenceActiveAreaExplicitGhosts:

[legend]

List of all members.

Public Member Functions
template<class L >
	ClusterSequenceActiveAreaExplicitGhosts (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &ghost_spec, const bool &writeout_combinations=false)
	constructor using a GhostedAreaSpec to specify how the area is to be measured
template<class L >
	ClusterSequenceActiveAreaExplicitGhosts (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const std::vector< L > &ghosts, double ghost_area, const bool &writeout_combinations=false)
template<class L >
void	_initialise (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec *ghost_spec, const std::vector< L > *ghosts, double ghost_area, const bool &writeout_combinations)
	does the actual work of initialisation
unsigned int	n_hard_particles () const
	returns the number of hard particles (i.e. those supplied by the user).
virtual double	area (const PseudoJet &jet) const
	returns the area of a jet
virtual PseudoJet	area_4vector (const PseudoJet &jet) const
	returns a four vector corresponding to the sum (E-scheme) of the ghost four-vectors composing the jet area, normalised such that for a small contiguous area the p_t of the extended_area jet is equal to area of the jet.
virtual bool	is_pure_ghost (const PseudoJet &jet) const
	true if a jet is made exclusively of ghosts
bool	is_pure_ghost (int history_index) const
	true if the entry in the history index corresponds to a ghost; if hist_ix does not correspond to an actual particle (i.e.
virtual bool	has_explicit_ghosts () const
	this class does have explicit ghosts
virtual double	empty_area (const RangeDefinition &range) const
	return the total area, up to |y|<maxrap, that consists of unclustered ghosts
double	total_area () const
	returns the total area under study
double	max_ghost_perp2 () const
	returns the largest squared transverse momentum among all ghosts
bool	has_dangerous_particles () const
	returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence
Private Member Functions
void	_add_ghosts (const GhostedAreaSpec &ghost_spec)
	adds the "ghost" momenta, which will be used to estimate the jet area
template<class L >
void	_add_ghosts (const std::vector< L > &ghosts, double ghost_area)
	another way of adding ghosts
void	_post_process ()
	routine to be called after the processing is done so as to establish summary information on all the jets (areas, whether pure ghost, etc.
Private Attributes
int	_n_ghosts
	get the area of the ghosts
double	_ghost_area
std::vector< bool >	_is_pure_ghost
std::vector< double >	_areas
std::vector< PseudoJet >	_area_4vectors
double	_max_ghost_perp2
bool	_has_dangerous_particles
unsigned int	_initial_hard_n
Static Private Attributes
static LimitedWarning	_warnings
	handle warning messages

---

Detailed Description

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity.

.. Figure out what to do about seeds later...)

Definition at line 49 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

---

Constructor & Destructor Documentation

template<class L >

ClusterSequenceActiveAreaExplicitGhosts::ClusterSequenceActiveAreaExplicitGhosts	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const GhostedAreaSpec &	ghost_spec,
		const bool &	writeout_combinations = false
	)			[inline]

constructor using a GhostedAreaSpec to specify how the area is to be measured

Definition at line 55 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _initialise().

           : ClusterSequenceAreaBase() {
           std::vector<L> * ghosts = NULL;
           _initialise(pseudojets,jet_def,&ghost_spec,ghosts,0.0,
                       writeout_combinations); }

template<class L >

ClusterSequenceActiveAreaExplicitGhosts::ClusterSequenceActiveAreaExplicitGhosts	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const std::vector< L > &	ghosts,
		double	ghost_area,
		const bool &	writeout_combinations = false
	)			[inline]

Definition at line 65 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _initialise().

           : ClusterSequenceAreaBase() {
           const GhostedAreaSpec * ghost_spec = NULL;
           _initialise(pseudojets,jet_def,ghost_spec,&ghosts,ghost_area,
                       writeout_combinations); }

---

Member Function Documentation

template<class L >

void ClusterSequenceActiveAreaExplicitGhosts::_add_ghosts	(	const std::vector< L > &	ghosts,
		double	ghost_area
	)			[inline, private]

another way of adding ghosts

add an explicitly specified bunch of ghosts

Definition at line 222 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _ghost_area, _is_pure_ghost, ClusterSequence::_jets, and _n_ghosts.

                                             {


  for (unsigned i = 0; i < ghosts.size(); i++) {
    _is_pure_ghost.push_back(true);
    _jets.push_back(ghosts[i]);
  }
  // and record some info about ghosts
  _ghost_area = ghost_area;
  _n_ghosts   = ghosts.size();
}

void ClusterSequenceActiveAreaExplicitGhosts::_add_ghosts

(

const GhostedAreaSpec &

ghost_spec

)

[private]

adds the "ghost" momenta, which will be used to estimate the jet area

template<class L >

void ClusterSequenceActiveAreaExplicitGhosts::_initialise	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const GhostedAreaSpec *	ghost_spec,
		const std::vector< L > *	ghosts,
		double	ghost_area,
		const bool &	writeout_combinations
	)			[inline]

does the actual work of initialisation

Definition at line 169 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by ClusterSequenceActiveAreaExplicitGhosts().

                                              {
  // don't reserve space yet -- will be done below

  // insert initial jets this way so that any type L that can be
  // converted to a pseudojet will work fine (basically PseudoJet
  // and any type that has [] subscript access to the momentum
  // components, such as CLHEP HepLorentzVector).
  for (unsigned int i = 0; i < pseudojets.size(); i++) {
    PseudoJet mom(pseudojets[i]);
    //mom.set_user_index(0); // for user's particles (user index now lost...)
    _jets.push_back(mom);
    _is_pure_ghost.push_back(false);
  }

  _initial_hard_n = _jets.size();

  if (ghost_spec != NULL) {
    _add_ghosts(*ghost_spec);
  } else {
    _add_ghosts(*ghosts, ghost_area);
  }

  if (writeout_combinations) {
    std::cout << "# Printing particles including ghosts\n";
    for (unsigned j = 0; j < _jets.size(); j++) {
      printf("%5u %20.13f %20.13f %20.13e\n",
               j,_jets[j].rap(),_jets[j].phi_02pi(),_jets[j].kt2());
    }
    std::cout << "# Finished printing particles including ghosts\n";
  }

  // this will ensure that we can still point to jets without
  // difficulties arising!
  _jets.reserve(_jets.size()*2);

  // run the clustering
  _initialise_and_run(jet_def,writeout_combinations);

  // set up all other information
  _post_process();
}

void ClusterSequenceActiveAreaExplicitGhosts::_post_process

(

)

[private]

routine to be called after the processing is done so as to establish summary information on all the jets (areas, whether pure ghost, etc.

)

virtual double ClusterSequenceActiveAreaExplicitGhosts::area

(

const PseudoJet &

jet

)

const [virtual]

returns the area of a jet

Reimplemented from ClusterSequenceAreaBase.

virtual PseudoJet ClusterSequenceActiveAreaExplicitGhosts::area_4vector

(

const PseudoJet &

jet

)

const [virtual]

returns a four vector corresponding to the sum (E-scheme) of the ghost four-vectors composing the jet area, normalised such that for a small contiguous area the p_t of the extended_area jet is equal to area of the jet.

Reimplemented from ClusterSequenceAreaBase.

virtual double ClusterSequenceActiveAreaExplicitGhosts::empty_area

(

const RangeDefinition &

range

)

const [virtual]

return the total area, up to |y|<maxrap, that consists of unclustered ghosts

Reimplemented from ClusterSequenceAreaBase.

bool ClusterSequenceActiveAreaExplicitGhosts::has_dangerous_particles

(

)

const [inline]

returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence

Definition at line 124 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _has_dangerous_particles.

Referenced by ClusterSequenceActiveArea::_run_AA(), and ClusterSequenceActiveArea::_throw_unless_jets_have_same_perp_or_E().

{return _has_dangerous_particles;}

virtual bool ClusterSequenceActiveAreaExplicitGhosts::has_explicit_ghosts

(

)

const [inline, virtual]

this class does have explicit ghosts

Reimplemented from ClusterSequenceAreaBase.

Definition at line 108 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

{return true;}

bool ClusterSequenceActiveAreaExplicitGhosts::is_pure_ghost

(

int

history_index

)

const

true if the entry in the history index corresponds to a ghost; if hist_ix does not correspond to an actual particle (i.e.

hist_ix < 0), then the result is false.

virtual bool ClusterSequenceActiveAreaExplicitGhosts::is_pure_ghost

(

const PseudoJet &

jet

)

const [virtual]

true if a jet is made exclusively of ghosts

Reimplemented from ClusterSequenceAreaBase.

Referenced by ClusterSequenceActiveArea::_transfer_ghost_free_history().

double ClusterSequenceActiveAreaExplicitGhosts::max_ghost_perp2

(

)

const [inline]

returns the largest squared transverse momentum among all ghosts

Definition at line 119 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _max_ghost_perp2.

{return _max_ghost_perp2;}

unsigned int ClusterSequenceActiveAreaExplicitGhosts::n_hard_particles

(

)

const [inline]

returns the number of hard particles (i.e. those supplied by the user).

Definition at line 217 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

References _initial_hard_n.

{return _initial_hard_n;}

double ClusterSequenceActiveAreaExplicitGhosts::total_area

(

)

const

returns the total area under study

---

Member Data Documentation

std::vector<PseudoJet> ClusterSequenceActiveAreaExplicitGhosts::_area_4vectors [private]

Definition at line 135 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

std::vector<double> ClusterSequenceActiveAreaExplicitGhosts::_areas [private]

Definition at line 134 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

double ClusterSequenceActiveAreaExplicitGhosts::_ghost_area [private]

Definition at line 132 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by _add_ghosts().

bool ClusterSequenceActiveAreaExplicitGhosts::_has_dangerous_particles [private]

Definition at line 139 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by has_dangerous_particles().

unsigned int ClusterSequenceActiveAreaExplicitGhosts::_initial_hard_n [private]

Definition at line 146 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by n_hard_particles().

std::vector<bool> ClusterSequenceActiveAreaExplicitGhosts::_is_pure_ghost [private]

Definition at line 133 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by _add_ghosts().

double ClusterSequenceActiveAreaExplicitGhosts::_max_ghost_perp2 [private]

Definition at line 138 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by max_ghost_perp2().

int ClusterSequenceActiveAreaExplicitGhosts::_n_ghosts [private]

get the area of the ghosts

Definition at line 131 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Referenced by _add_ghosts().

LimitedWarning ClusterSequenceActiveAreaExplicitGhosts::_warnings [static, private]

handle warning messages

allow for warnings

Reimplemented from ClusterSequenceAreaBase.

Definition at line 140 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

---

The documentation for this class was generated from the following file:

• include/fastjet/ClusterSequenceActiveAreaExplicitGhosts.hh
