fastjet::VoronoiDiagramGenerator Class Reference

#include <Voronoi.hh>

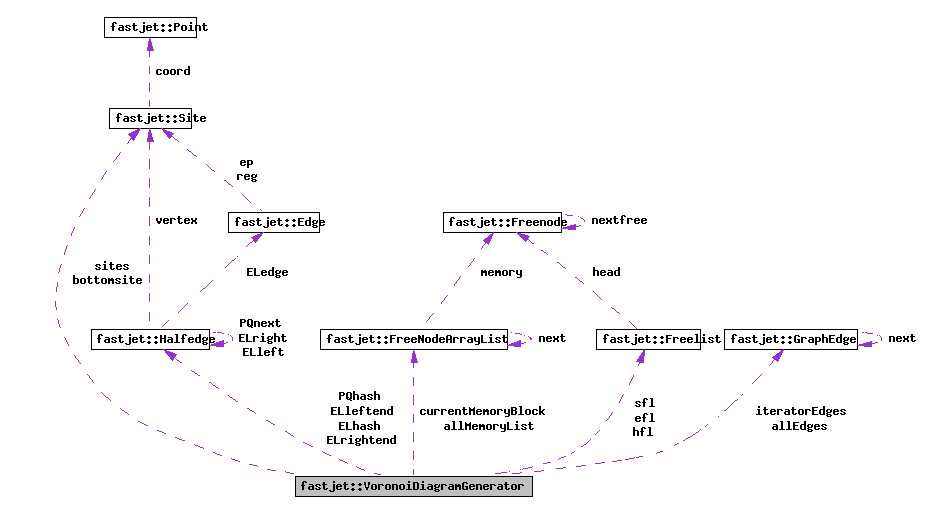

Collaboration diagram for fastjet::VoronoiDiagramGenerator:

Collaboration graph
fastjet::Halfedgefastjet::Edgefastjet::Sitefastjet::Pointfastjet::FreeNodeArrayListfastjet::Freenodefastjet::Freelistfastjet::GraphEdge
[legend]
List of all members.

Public Member Functions

 VoronoiDiagramGenerator ()
 ~VoronoiDiagramGenerator ()
bool generateVoronoi (vector< Point > *_parent_sites, double minX, double maxX, double minY, double maxY, double minDist=0)
void resetIterator ()
bool getNext (GraphEdge **e)

Public Attributes

vector< Point > * parent_sites
int n_parent_sites

Private Member Functions

void cleanup ()
void cleanupEdges ()
char * getfree (Freelist *fl)
HalfedgePQfind ()
int PQempty ()
HalfedgeHEcreate ()
Halfedge ** ELleft ()
Halfedge *** ELright ()
Halfedge **** ELleftbnd ()
HalfedgeHEcreate (Edge *e, int pm)
Point PQ_min ()
HalfedgePQextractmin ()
void freeinit (Freelist *fl, int size)
void makefree (Freenode *curr, Freelist *fl)
void geominit ()
void plotinit ()
bool voronoi (int triangulate)
void ref (Site *v)
void deref (Site *v)
void endpoint (Edge *e, int lr, Site *s)
void ELdelete (Halfedge *he)
HalfedgeELleftbnd (Point *p)
HalfedgeELright (Halfedge *he)
void makevertex (Site *v)
void out_triple (Site *s1, Site *s2, Site *s3)
void PQinsert (Halfedge *he, Site *v, double offset)
void PQdelete (Halfedge *he)
bool ELinitialize ()
void ELinsert (Halfedge *lb, Halfedge *newHe)
HalfedgeELgethash (int b)
HalfedgeELleft (Halfedge *he)
Siteleftreg (Halfedge *he)
void out_site (Site *s)
bool PQinitialize ()
int PQbucket (Halfedge *he)
void clip_line (Edge *e)
char * myalloc (unsigned n)
int right_of (Halfedge *el, Point *p)
Siterightreg (Halfedge *he)
Edgebisect (Site *s1, Site *s2)
double dist (Site *s, Site *t)
Siteintersect (Halfedge *el1, Halfedge *el2, Point *p=0)
void out_bisector (Edge *e)
void out_ep (Edge *e)
void out_vertex (Site *v)
Sitenextone ()
void pushGraphEdge (double x1, double y1, double x2, double y2, Site *s1, Site *s2)
void openpl ()
void circle (double x, double y, double radius)
void range (double minX, double minY, double maxX, double maxY)

Private Attributes

Halfedge ** ELhash
Freelist hfl
HalfedgeELleftend
HalfedgeELrightend
int ELhashsize
int triangulate
int sorted
int plot
int debug
double xmin
double xmax
double ymin
double ymax
double deltax
double deltay
Sitesites
int nsites
int siteidx
int sqrt_nsites
int nvertices
Freelist sfl
Sitebottomsite
int nedges
Freelist efl
int PQhashsize
HalfedgePQhash
int PQcount
int PQmin
int ntry
int totalsearch
double pxmin
double pxmax
double pymin
double pymax
double cradius
int total_alloc
double borderMinX
double borderMaxX
double borderMinY
double borderMaxY
FreeNodeArrayListallMemoryList
FreeNodeArrayListcurrentMemoryBlock
GraphEdgeallEdges
GraphEdgeiteratorEdges
double minDistanceBetweenSites

Detailed Description

Definition at line 194 of file Voronoi.hh.


Constructor & Destructor Documentation

fastjet::VoronoiDiagramGenerator::VoronoiDiagramGenerator (  )

Definition at line 62 of file Voronoi.cc.

References allEdges, allMemoryList, currentMemoryBlock, ELhash, iteratorEdges, fastjet::FreeNodeArrayList::memory, minDistanceBetweenSites, fastjet::FreeNodeArrayList::next, parent_sites, PQhash, siteidx, and sites.

00062                                                 {
00063   siteidx = 0;
00064   sites = NULL;
00065   parent_sites = NULL;
00066
00067   allMemoryList = new FreeNodeArrayList;
00068   allMemoryList->memory = NULL;
00069   allMemoryList->next = NULL;
00070   currentMemoryBlock = allMemoryList;
00071   allEdges = NULL;
00072   iteratorEdges = 0;
00073   minDistanceBetweenSites = 0;
00074
00075   ELhash = NULL;
00076   PQhash = NULL;
00077 }

fastjet::VoronoiDiagramGenerator::~VoronoiDiagramGenerator (  )

Definition at line 79 of file Voronoi.cc.

References allMemoryList, cleanup(), and cleanupEdges().

00079                                                  {
00080   cleanup();
00081   cleanupEdges();
00082
00083   if (allMemoryList != NULL)
00084     delete allMemoryList;
00085 }


Member Function Documentation

bool fastjet::VoronoiDiagramGenerator::generateVoronoi ( vector< Point > *  _parent_sites,
double  minX,
double  maxX,
double  minY,
double  maxY,
double  minDist = 0
)

Definition at line 89 of file Voronoi.cc.

References borderMaxX, borderMaxY, borderMinX, borderMinY, cleanup(), cleanupEdges(), fastjet::Site::coord, debug, freeinit(), geominit(), minDistanceBetweenSites, myalloc(), n_parent_sites, nsites, parent_sites, plot, fastjet::Site::refcnt, fastjet::scomp(), sfl, siteidx, fastjet::Site::sitenbr, sites, sorted, triangulate, voronoi(), fastjet::Point::x, xmax, xmin, fastjet::Point::y, ymax, and ymin.

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

00092                                                              {
00093   cleanup();
00094   cleanupEdges();
00095   int i;
00096   double x, y;
00097
00098   minDistanceBetweenSites = minDist;
00099
00100   parent_sites = _parent_sites;
00101
00102   nsites = n_parent_sites = parent_sites->size();
00103   plot = 0;
00104   triangulate = 0;
00105   debug = 1;
00106   sorted = 0;
00107   freeinit(&sfl, sizeof (Site));
00108
00109   //sites = (Site *) myalloc(nsites*sizeof( *sites));
00110   sites = (Site *) myalloc(nsites*sizeof( Site));
00111   //parent_sites = (Site *) myalloc(nsites*sizeof( Site));
00112
00113   if (sites == 0)
00114     return false;
00115
00116   xmax = xmin = (*parent_sites)[0].x;
00117   ymax = ymin = (*parent_sites)[0].y;
00118
00119   for(i=0;i<nsites;i++){
00120     x = (*parent_sites)[i].x;
00121     y = (*parent_sites)[i].y;
00122     sites[i].coord.x = x;
00123     sites[i].coord.y = y;
00124     sites[i].sitenbr = i;
00125     sites[i].refcnt  = 0;
00126
00127     if (x<xmin)
00128       xmin=x;
00129     else if (x>xmax)
00130       xmax=x;
00131
00132     if (y<ymin)
00133       ymin=y;
00134     else if (y>ymax)
00135       ymax=y;
00136   }
00137
00138   qsort(sites, nsites, sizeof (*sites), scomp);
00139
00140   siteidx = 0;
00141   geominit();
00142   double temp = 0;
00143   if(minX > maxX){
00144     temp = minX;
00145     minX = maxX;
00146     maxX = temp;
00147   }
00148   if(minY > maxY){
00149     temp = minY;
00150     minY = maxY;
00151     maxY = temp;
00152   }
00153   borderMinX = minX;
00154   borderMinY = minY;
00155   borderMaxX = maxX;
00156   borderMaxY = maxY;
00157
00158   siteidx = 0;
00159   voronoi(triangulate);
00160
00161   return true;
00162 }

void fastjet::VoronoiDiagramGenerator::resetIterator (  )  [inline]

Definition at line 203 of file Voronoi.hh.

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

00203                              {
00204     iteratorEdges = allEdges;
00205   }

bool fastjet::VoronoiDiagramGenerator::getNext ( GraphEdge **  e  )  [inline]

Definition at line 207 of file Voronoi.hh.

References fastjet::GraphEdge::next.

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

00207                              {
00208     if(iteratorEdges == 0)
00209       return false;
00210
00211     *e = iteratorEdges;
00212     iteratorEdges = iteratorEdges->next;
00213     return true;
00214   }

void fastjet::VoronoiDiagramGenerator::cleanup (  )  [private]

Definition at line 655 of file Voronoi.cc.

References allMemoryList, currentMemoryBlock, ELhash, fastjet::FreeNodeArrayList::memory, fastjet::FreeNodeArrayList::next, PQhash, and sites.

Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator().

00656 {
00657   if(sites != NULL){
00658     free(sites);
00659     sites = 0;
00660   }
00661
00662   FreeNodeArrayList* current=NULL, *prev=NULL;
00663
00664   current = prev = allMemoryList;
00665
00666   while(current->next!=NULL){
00667     prev = current;
00668     current = current->next;
00669     free(prev->memory);
00670     delete prev;
00671     prev = NULL;
00672   }
00673
00674   if(current!=NULL){
00675     if (current->memory!=NULL){
00676       free(current->memory);
00677     }
00678     delete current;
00679   }
00680
00681   allMemoryList = new FreeNodeArrayList;
00682   allMemoryList->next = NULL;
00683   allMemoryList->memory = NULL;
00684   currentMemoryBlock = allMemoryList;
00685
00686   if (ELhash!=NULL)
00687     free(ELhash);
00688
00689   if (PQhash!=NULL)
00690     free(PQhash);
00691 }

void fastjet::VoronoiDiagramGenerator::cleanupEdges (  )  [private]

Definition at line 693 of file Voronoi.cc.

References allEdges, and fastjet::GraphEdge::next.

Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator().

00694 {
00695   GraphEdge* geCurrent = NULL, *gePrev = NULL;
00696   geCurrent = gePrev = allEdges;
00697
00698   while(geCurrent!=NULL){
00699     gePrev = geCurrent;
00700     geCurrent = geCurrent->next;
00701     delete gePrev;
00702   }
00703
00704   allEdges = 0;
00705
00706 }

char * fastjet::VoronoiDiagramGenerator::getfree ( Freelist fl  )  [private]

Definition at line 622 of file Voronoi.cc.

References currentMemoryBlock, fastjet::Freelist::head, makefree(), fastjet::FreeNodeArrayList::memory, myalloc(), fastjet::FreeNodeArrayList::next, fastjet::Freelist::nodesize, and sqrt_nsites.

Referenced by bisect(), HEcreate(), and intersect().

00623 {
00624   int i;
00625   Freenode *t;
00626
00627   if(fl->head == (Freenode *) NULL)
00628     {
00629       t =  (Freenode *) myalloc(sqrt_nsites * fl->nodesize);
00630
00631       if(t == 0)
00632         return 0;
00633
00634       currentMemoryBlock->next = new FreeNodeArrayList;
00635       currentMemoryBlock = currentMemoryBlock->next;
00636       currentMemoryBlock->memory = t;
00637       currentMemoryBlock->next = 0;
00638
00639       for(i=0; i<sqrt_nsites; i+=1)
00640         makefree((Freenode *)((char *)t+i*fl->nodesize), fl);
00641     };
00642   t = fl->head;
00643   fl->head = (fl->head)->nextfree;
00644   return((char *)t);
00645 }

Halfedge* fastjet::VoronoiDiagramGenerator::PQfind (  )  [private]

int fastjet::VoronoiDiagramGenerator::PQempty (  )  [private]

Definition at line 570 of file Voronoi.cc.

References PQcount.

Referenced by voronoi().

00571 {
00572   return(PQcount==0);
00573 }

Halfedge* fastjet::VoronoiDiagramGenerator::HEcreate (  )  [private]

Referenced by ELinitialize(), and voronoi().

Halfedge* * fastjet::VoronoiDiagramGenerator::ELleft (  )  [private]

Referenced by ELinsert(), and voronoi().

Halfedge* * * fastjet::VoronoiDiagramGenerator::ELright (  )  [private]

Referenced by ELdelete(), and voronoi().

Halfedge* * * * fastjet::VoronoiDiagramGenerator::ELleftbnd (  )  [private]

Referenced by voronoi().

Halfedge * fastjet::VoronoiDiagramGenerator::HEcreate ( Edge e,
int  pm
) [private]

Definition at line 188 of file Voronoi.cc.

References fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, fastjet::Halfedge::ELrefcnt, getfree(), hfl, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex.

00188                                                          {
00189   Halfedge *answer;
00190   answer = (Halfedge*) getfree(&hfl);
00191   answer->ELedge = e;
00192   answer->ELpm = pm;
00193   answer->PQnext = (Halfedge*) NULL;
00194   answer->vertex = (Site*) NULL;
00195   answer->ELrefcnt = 0;
00196   return answer;
00197 }

Point fastjet::VoronoiDiagramGenerator::PQ_min (  )  [private]

Definition at line 576 of file Voronoi.cc.

References fastjet::Site::coord, PQhash, PQmin, fastjet::Halfedge::PQnext, fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar.

Referenced by voronoi().

00577 {
00578   Point answer;
00579
00580   while(PQhash[PQmin].PQnext == (Halfedge *)NULL) {PQmin += 1;};
00581   answer.x = PQhash[PQmin].PQnext->vertex->coord.x;
00582   answer.y = PQhash[PQmin].PQnext->ystar;
00583   return (answer);
00584 }

Halfedge * fastjet::VoronoiDiagramGenerator::PQextractmin (  )  [private]

Definition at line 586 of file Voronoi.cc.

References PQcount, PQhash, PQmin, and fastjet::Halfedge::PQnext.

Referenced by voronoi().

00587 {
00588   Halfedge *curr;
00589
00590   curr = PQhash[PQmin].PQnext;
00591   PQhash[PQmin].PQnext = curr->PQnext;
00592   PQcount -= 1;
00593   return(curr);
00594 }

void fastjet::VoronoiDiagramGenerator::freeinit ( Freelist fl,
int  size
) [private]

Definition at line 616 of file Voronoi.cc.

References fastjet::Freelist::head, and fastjet::Freelist::nodesize.

Referenced by ELinitialize(), generateVoronoi(), and geominit().

00617 {
00618   fl->head = (Freenode *) NULL;
00619   fl->nodesize = size;
00620 }

void fastjet::VoronoiDiagramGenerator::makefree ( Freenode curr,
Freelist fl
) [private]

Definition at line 649 of file Voronoi.cc.

References fastjet::Freelist::head, and fastjet::Freenode::nextfree.

Referenced by deref(), ELgethash(), endpoint(), and getfree().

00650 {
00651   curr->nextfree = fl->head;
00652   fl->head = curr;
00653 }

void fastjet::VoronoiDiagramGenerator::geominit (  )  [private]

Definition at line 323 of file Voronoi.cc.

References deltax, deltay, efl, freeinit(), nedges, nsites, nvertices, sqrt_nsites, xmax, xmin, ymax, and ymin.

Referenced by generateVoronoi().

00323                                       {
00324   double sn;
00325
00326   freeinit(&efl, sizeof(Edge));
00327   nvertices = 0;
00328   nedges = 0;
00329   sn = (double)nsites+4;
00330   sqrt_nsites = (int)sqrt(sn);
00331   deltay = ymax - ymin;
00332   deltax = xmax - xmin;
00333 }

void fastjet::VoronoiDiagramGenerator::plotinit (  )  [private]

Definition at line 775 of file Voronoi.cc.

References cradius, openpl(), pxmax, pxmin, pymax, pymin, range(), xmax, xmin, ymax, and ymin.

00776 {
00777   double dx,dy,d;
00778
00779   dy = ymax - ymin;
00780   dx = xmax - xmin;
00781   d = (double)(( dx > dy ? dx : dy) * 1.1);
00782   pxmin = (double)(xmin - (d-dx)/2.0);
00783   pxmax = (double)(xmax + (d-dx)/2.0);
00784   pymin = (double)(ymin - (d-dy)/2.0);
00785   pymax = (double)(ymax + (d-dy)/2.0);
00786   cradius = (double)((pxmax - pxmin)/350.0);
00787   openpl();
00788   range(pxmin, pymin, pxmax, pymax);
00789 }

bool fastjet::VoronoiDiagramGenerator::voronoi ( int  triangulate  )  [private]

Definition at line 913 of file Voronoi.cc.

References bisect(), bottomsite, clip_line(), fastjet::Site::coord, deref(), dist(), ELdelete(), fastjet::Halfedge::ELedge, ELinitialize(), ELinsert(), ELleft(), ELleftbnd(), ELleftend, fastjet::Halfedge::ELpm, ELright(), ELrightend, endpoint(), HEcreate(), intersect(), le, leftreg(), makevertex(), nextone(), out_site(), out_triple(), PQ_min(), PQdelete(), PQempty(), PQextractmin(), PQinitialize(), PQinsert(), re, rightreg(), fastjet::Halfedge::vertex, fastjet::Point::x, and fastjet::Point::y.

Referenced by generateVoronoi().

00914 {
00915   Site *newsite, *bot, *top, *temp, *p;
00916   Site *v;
00917   Point newintstar;
00918   int pm;
00919   Halfedge *lbnd, *rbnd, *llbnd, *rrbnd, *bisector;
00920   Edge *e;
00921
00922   PQinitialize();
00923   bottomsite = nextone();
00924   out_site(bottomsite);
00925   bool retval = ELinitialize();
00926
00927   if(!retval)
00928     return false;
00929
00930   newsite = nextone();
00931   while(1)
00932     {
00933
00934       if(!PQempty())
00935         newintstar = PQ_min();
00936
00937       //if the lowest site has a smaller y value than the lowest vector intersection, process the site
00938       //otherwise process the vector intersection
00939
00940       if (newsite != (Site *)NULL       && (PQempty() || newsite->coord.y < newintstar.y
00941                                                     || (newsite->coord.y == newintstar.y && newsite->coord.x < newintstar.x)))
00942         {/* new site is smallest - this is a site event*/
00943           out_site(newsite);                                            //output the site
00944           lbnd = ELleftbnd(&(newsite->coord));                          //get the first HalfEdge to the LEFT of the new site
00945           rbnd = ELright(lbnd);                                         //get the first HalfEdge to the RIGHT of the new site
00946           bot = rightreg(lbnd);                                         //if this halfedge has no edge, , bot = bottom site (whatever that is)
00947           e = bisect(bot, newsite);                                     //create a new edge that bisects
00948           bisector = HEcreate(e, le);                                   //create a new HalfEdge, setting its ELpm field to 0
00949           ELinsert(lbnd, bisector);                                     //insert this new bisector edge between the left and right vectors in a linked list
00950
00951           if ((p = intersect(lbnd, bisector)) != (Site *) NULL)         //if the new bisector intersects with the left edge, remove the left edge's vertex, and put in the new one
00952             {
00953               PQdelete(lbnd);
00954               PQinsert(lbnd, p, dist(p,newsite));
00955             };
00956           lbnd = bisector;
00957           bisector = HEcreate(e, re);                                   //create a new HalfEdge, setting its ELpm field to 1
00958           ELinsert(lbnd, bisector);                                     //insert the new HE to the right of the original bisector earlier in the IF stmt
00959
00960           if ((p = intersect(bisector, rbnd)) != (Site *) NULL) //if this new bisector intersects with the
00961             {
00962               PQinsert(bisector, p, dist(p,newsite));                   //push the HE into the ordered linked list of vertices
00963             };
00964           newsite = nextone();
00965         }
00966       else if (!PQempty()) /* intersection is smallest - this is a vector event */
00967         {
00968           lbnd = PQextractmin();                                                //pop the HalfEdge with the lowest vector off the ordered list of vectors
00969           llbnd = ELleft(lbnd);                                         //get the HalfEdge to the left of the above HE
00970           rbnd = ELright(lbnd);                                         //get the HalfEdge to the right of the above HE
00971           rrbnd = ELright(rbnd);                                                //get the HalfEdge to the right of the HE to the right of the lowest HE
00972           bot = leftreg(lbnd);                                          //get the Site to the left of the left HE which it bisects
00973           top = rightreg(rbnd);                                         //get the Site to the right of the right HE which it bisects
00974
00975           out_triple(bot, top, rightreg(lbnd));         //output the triple of sites, stating that a circle goes through them
00976
00977           v = lbnd->vertex;                                             //get the vertex that caused this event
00978           makevertex(v);                                                        //set the vertex number - couldn't do this earlier since we didn't know when it would be processed
00979           endpoint(lbnd->ELedge,lbnd->ELpm,v);  //set the endpoint of the left HalfEdge to be this vector
00980           endpoint(rbnd->ELedge,rbnd->ELpm,v);  //set the endpoint of the right HalfEdge to be this vector
00981           ELdelete(lbnd);                                                       //mark the lowest HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00982           PQdelete(rbnd);                                                       //remove all vertex events to do with the  right HE
00983           ELdelete(rbnd);                                                       //mark the right HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00984           pm = le;                                                              //set the pm variable to zero
00985
00986           if (bot->coord.y > top->coord.y)              //if the site to the left of the event is higher than the Site
00987             {                                                                           //to the right of it, then swap them and set the 'pm' variable to 1
00988               temp = bot;
00989               bot = top;
00990               top = temp;
00991               pm = re;
00992             }
00993           e = bisect(bot, top);                                 //create an Edge (or line) that is between the two Sites. This creates
00994           //the formula of the line, and assigns a line number to it
00995           bisector = HEcreate(e, pm);                           //create a HE from the Edge 'e', and make it point to that edge with its ELedge field
00996           ELinsert(llbnd, bisector);                            //insert the new bisector to the right of the left HE
00997           endpoint(e, re-pm, v);                                        //set one endpoint to the new edge to be the vector point 'v'.
00998           //If the site to the left of this bisector is higher than the right
00999           //Site, then this endpoint is put in position 0; otherwise in pos 1
01000           deref(v);                                                             //delete the vector 'v'
01001
01002           //if left HE and the new bisector don't intersect, then delete the left HE, and reinsert it
01003           if((p = intersect(llbnd, bisector)) != (Site *) NULL)
01004             {
01005               PQdelete(llbnd);
01006               PQinsert(llbnd, p, dist(p,bot));
01007             };
01008
01009           //if right HE and the new bisector don't intersect, then reinsert it
01010           if ((p = intersect(bisector, rrbnd)) != (Site *) NULL)
01011             {
01012               PQinsert(bisector, p, dist(p,bot));
01013             };
01014         }
01015       else break;
01016     };
01017
01018
01019
01020
01021   for(lbnd=ELright(ELleftend); lbnd != ELrightend; lbnd=ELright(lbnd))
01022     {
01023       e = lbnd->ELedge;
01024
01025       clip_line(e);
01026     };
01027
01028   //cleanup();
01029
01030   return true;
01031
01032 }

void fastjet::VoronoiDiagramGenerator::ref ( Site v  )  [private]

Definition at line 514 of file Voronoi.cc.

References fastjet::Site::refcnt.

Referenced by bisect(), endpoint(), and PQinsert().

00515 {
00516   v->refcnt += 1;
00517 }

void fastjet::VoronoiDiagramGenerator::deref ( Site v  )  [private]

Definition at line 507 of file Voronoi.cc.

References makefree(), fastjet::Site::refcnt, and sfl.

Referenced by endpoint(), PQdelete(), and voronoi().

00508 {
00509   v->refcnt -= 1;
00510   if (v->refcnt == 0 )
00511     makefree((Freenode*)v, &sfl);
00512 }

void fastjet::VoronoiDiagramGenerator::endpoint ( Edge e,
int  lr,
Site s
) [private]

Definition at line 475 of file Voronoi.cc.

References clip_line(), deref(), efl, fastjet::Edge::ep, le, makefree(), re, ref(), and fastjet::Edge::reg.

Referenced by voronoi().

00476 {
00477   e->ep[lr] = s;
00478   ref(s);
00479   if(e->ep[re-lr]== (Site *) NULL)
00480     return;
00481
00482   clip_line(e);
00483
00484   deref(e->reg[le]);
00485   deref(e->reg[re]);
00486   makefree((Freenode*)e, &efl);
00487 }

void fastjet::VoronoiDiagramGenerator::ELdelete ( Halfedge he  )  [private]

Definition at line 285 of file Voronoi.cc.

References DELETED, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELleft, fastjet::Halfedge::ELright, and ELright().

Referenced by voronoi().

00285                                                   {
00286   (he->ELleft)->ELright = he->ELright;
00287   (he->ELright)->ELleft = he->ELleft;
00288   he->ELedge = (Edge*) DELETED;
00289 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELleftbnd ( Point p  )  [private]

Definition at line 227 of file Voronoi.cc.

References deltax, ELgethash(), ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELrefcnt, fastjet::Halfedge::ELright, ELrightend, ntry, right_of(), totalsearch, fastjet::Point::x, and xmin.

00227                                                      {
00228   int i, bucket;
00229   Halfedge *he;
00230
00231   /* Use hash table to get close to desired halfedge */
00232   // use the hash function to find the place in the hash map that this
00233   // HalfEdge should be
00234   bucket = (int)((p->x - xmin)/deltax * ELhashsize);
00235
00236   // make sure that the bucket position in within the range of the
00237   //hash array
00238   if (bucket<0) bucket =0;
00239   if (bucket>=ELhashsize) bucket = ELhashsize - 1;
00240
00241   he = ELgethash(bucket);
00242
00243   // if the HE isn't found, search backwards and forwards in the hash
00244   // map for the first non-null entry
00245   if (he == (Halfedge*) NULL){
00246     for(i=1;1;i++){
00247       if ((he=ELgethash(bucket-i)) != (Halfedge*) NULL)
00248         break;
00249       if ((he=ELgethash(bucket+i)) != (Halfedge*) NULL)
00250         break;
00251     };
00252     totalsearch += i;
00253   };
00254   ntry += 1;
00255   /* Now search linear list of halfedges for the correct one */
00256   if ((he==ELleftend)  || (he != ELrightend && right_of(he,p))){
00257     do{
00258       he = he->ELright;
00259     } while (he!=ELrightend && right_of(he,p));
00260       // keep going right on the list until either the end is reached,
00261       // or you find the 1st edge which the point
00262       he = he->ELleft;  //isn't to the right of
00263   } else
00264     // if the point is to the left of the HalfEdge, then search left
00265     // for the HE just to the left of the point
00266     do{
00267       he = he->ELleft;
00268     } while ((he!=ELleftend )&& (!right_of(he,p)));
00269
00270   /* Update hash table and reference counts */
00271   if ((bucket > 0) && (bucket <ELhashsize-1)){
00272     if(ELhash[bucket] != (Halfedge *) NULL){
00273       ELhash[bucket]->ELrefcnt -= 1;
00274     }
00275     ELhash[bucket] = he;
00276     ELhash[bucket]->ELrefcnt += 1;
00277   };
00278
00279   return he;
00280 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELright ( Halfedge he  )  [private]

Definition at line 292 of file Voronoi.cc.

References fastjet::Halfedge::ELright.

00292                                                       {
00293   return he->ELright;
00294 }

void fastjet::VoronoiDiagramGenerator::makevertex ( Site v  )  [private]

Definition at line 499 of file Voronoi.cc.

References nvertices, out_vertex(), and fastjet::Site::sitenbr.

Referenced by voronoi().

00500 {
00501   v->sitenbr = nvertices;
00502   nvertices += 1;
00503   out_vertex(v);
00504 }

void fastjet::VoronoiDiagramGenerator::out_triple ( Site s1,
Site s2,
Site s3
) [private]

Definition at line 768 of file Voronoi.cc.

Referenced by voronoi().

00769 {
00770
00771 }

void fastjet::VoronoiDiagramGenerator::PQinsert ( Halfedge he,
Site v,
double  offset
) [private]

Definition at line 520 of file Voronoi.cc.

References fastjet::Site::coord, PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, ref(), fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar.

Referenced by voronoi().

00521 {
00522   Halfedge *last, *next;
00523
00524   he->vertex = v;
00525   ref(v);
00526   he->ystar = (double)(v->coord.y + offset);
00527   last = &PQhash[PQbucket(he)];
00528   while ((next = last->PQnext) != (Halfedge *) NULL &&
00529          (he->ystar  > next->ystar  ||
00530           (he->ystar == next->ystar && v->coord.x > next->vertex->coord.x)))
00531     {
00532       last = next;
00533     };
00534   he->PQnext = last->PQnext;
00535   last->PQnext = he;
00536   PQcount += 1;
00537 }

void fastjet::VoronoiDiagramGenerator::PQdelete ( Halfedge he  )  [private]

Definition at line 540 of file Voronoi.cc.

References deref(), PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex.

Referenced by voronoi().

00541 {
00542   Halfedge *last;
00543
00544   if(he->vertex != (Site *) NULL)
00545     {
00546       last = &PQhash[PQbucket(he)];
00547       while (last->PQnext != he)
00548         last = last->PQnext;
00549
00550       last->PQnext = he->PQnext;
00551       PQcount -= 1;
00552       deref(he->vertex);
00553       he->vertex = (Site *) NULL;
00554     };
00555 }

bool fastjet::VoronoiDiagramGenerator::ELinitialize (  )  [private]

Definition at line 164 of file Voronoi.cc.

References ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELright, ELrightend, freeinit(), HEcreate(), hfl, myalloc(), and sqrt_nsites.

Referenced by voronoi().

00164                                           {
00165   int i;
00166   freeinit(&hfl, sizeof(Halfedge));
00167   ELhashsize = 2 * sqrt_nsites;
00168   //ELhash = (Halfedge **) myalloc ( sizeof *ELhash * ELhashsize);
00169   ELhash = (Halfedge **) myalloc ( sizeof(Halfedge*)*ELhashsize);
00170
00171   if(ELhash == 0)
00172     return false;
00173
00174   for(i=0; i<ELhashsize; i +=1) ELhash[i] = (Halfedge *)NULL;
00175   ELleftend = HEcreate((Edge*) NULL, 0);
00176   ELrightend = HEcreate((Edge*) NULL, 0);
00177   ELleftend->ELleft = (Halfedge*) NULL;
00178   ELleftend->ELright = ELrightend;
00179   ELrightend->ELleft = ELleftend;
00180   ELrightend->ELright = (Halfedge*) NULL;
00181   ELhash[0] = ELleftend;
00182   ELhash[ELhashsize-1] = ELrightend;
00183
00184   return true;
00185 }

void fastjet::VoronoiDiagramGenerator::ELinsert ( Halfedge lb,
Halfedge newHe
) [private]

Definition at line 200 of file Voronoi.cc.

References ELleft(), fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright.

Referenced by voronoi().

00201 {
00202   newHe->ELleft = lb;
00203   newHe->ELright = lb->ELright;
00204   (lb->ELright)->ELleft = newHe;
00205   lb->ELright = newHe;
00206 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELgethash ( int  b  )  [private]

Definition at line 210 of file Voronoi.cc.

References DELETED, fastjet::Halfedge::ELedge, ELhash, ELhashsize, fastjet::Halfedge::ELrefcnt, hfl, and makefree().

Referenced by ELleftbnd().

00210                                                  {
00211   Halfedge *he;
00212
00213   if ((b<0) || (b>=ELhashsize))
00214     return (Halfedge *) NULL;
00215
00216   he = ELhash[b];
00217   if ((he==(Halfedge*) NULL) || (he->ELedge!=(Edge*) DELETED))
00218     return he;
00219
00220   /* Hash table points to deleted half edge.  Patch as necessary. */
00221   ELhash[b] = (Halfedge*) NULL;
00222   if ((he->ELrefcnt -= 1) == 0)
00223     makefree((Freenode*)he, &hfl);
00224   return (Halfedge*) NULL;
00225 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELleft ( Halfedge he  )  [private]

Definition at line 297 of file Voronoi.cc.

References fastjet::Halfedge::ELleft.

00297                                                      {
00298   return he->ELleft;
00299 }

Site * fastjet::VoronoiDiagramGenerator::leftreg ( Halfedge he  )  [private]

Definition at line 302 of file Voronoi.cc.

References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg.

Referenced by voronoi().

00302                                                    {
00303   if (he->ELedge == (Edge*) NULL)
00304     return(bottomsite);
00305   return (he->ELpm == le)
00306     ? he->ELedge->reg[le]
00307     : he->ELedge->reg[re];
00308 }

void fastjet::VoronoiDiagramGenerator::out_site ( Site s  )  [private]

Definition at line 760 of file Voronoi.cc.

References circle(), fastjet::Site::coord, cradius, debug, plot, triangulate, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00761 {
00762   if(!triangulate & plot & !debug)
00763     circle (s->coord.x, s->coord.y, cradius);
00764
00765 }

bool fastjet::VoronoiDiagramGenerator::PQinitialize (  )  [private]

Definition at line 597 of file Voronoi.cc.

References myalloc(), PQcount, PQhash, PQhashsize, PQmin, and sqrt_nsites.

Referenced by voronoi().

00598 {
00599   int i;
00600
00601   PQcount = 0;
00602   PQmin = 0;
00603   PQhashsize = 4 * sqrt_nsites;
00604   //PQhash = (Halfedge *) myalloc(PQhashsize * sizeof *PQhash);
00605   PQhash = (Halfedge *) myalloc(PQhashsize * sizeof(Halfedge));
00606
00607   if(PQhash == 0)
00608     return false;
00609
00610   for(i=0; i<PQhashsize; i+=1) PQhash[i].PQnext = (Halfedge *)NULL;
00611
00612   return true;
00613 }

int fastjet::VoronoiDiagramGenerator::PQbucket ( Halfedge he  )  [private]

Definition at line 557 of file Voronoi.cc.

References deltay, PQhashsize, PQmin, ymin, and fastjet::Halfedge::ystar.

Referenced by PQdelete(), and PQinsert().

00558 {
00559   int bucket;
00560
00561   bucket = (int)((he->ystar - ymin)/deltay * PQhashsize);
00562   if (bucket<0) bucket = 0;
00563   if (bucket>=PQhashsize) bucket = PQhashsize-1 ;
00564   if (bucket < PQmin) PQmin = bucket;
00565   return(bucket);
00566 }

void fastjet::VoronoiDiagramGenerator::clip_line ( Edge e  )  [private]

Definition at line 792 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, borderMaxX, borderMaxY, borderMinX, borderMinY, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::ep, pushGraphEdge(), pxmax, pxmin, pymax, pymin, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by endpoint(), and voronoi().

00793 {
00794   Site *s1, *s2;
00795   double x1=0,x2=0,y1=0,y2=0; //, temp = 0;
00796
00797   x1 = e->reg[0]->coord.x;
00798   x2 = e->reg[1]->coord.x;
00799   y1 = e->reg[0]->coord.y;
00800   y2 = e->reg[1]->coord.y;
00801
00802   //if the distance between the two points this line was created from is less than
00803   //the square root of 2, then ignore it
00804   //TODO improve/remove
00805   //if(sqrt(((x2 - x1) * (x2 - x1)) + ((y2 - y1) * (y2 - y1))) < minDistanceBetweenSites)
00806   //  {
00807   //    return;
00808   //  }
00809   pxmin = borderMinX;
00810   pxmax = borderMaxX;
00811   pymin = borderMinY;
00812   pymax = borderMaxY;
00813
00814   if(e->a == 1.0 && e ->b >= 0.0)
00815     {
00816       s1 = e->ep[1];
00817       s2 = e->ep[0];
00818     }
00819   else
00820     {
00821       s1 = e->ep[0];
00822       s2 = e->ep[1];
00823     };
00824
00825   if(e->a == 1.0)
00826     {
00827       y1 = pymin;
00828       if (s1!=(Site *)NULL && s1->coord.y > pymin)
00829         {
00830           y1 = s1->coord.y;
00831         }
00832       if(y1>pymax)
00833         {
00834           //    printf("\nClipped (1) y1 = %f to %f",y1,pymax);
00835           y1 = pymax;
00836           //return;
00837         }
00838       x1 = e->c - e->b * y1;
00839       y2 = pymax;
00840       if (s2!=(Site *)NULL && s2->coord.y < pymax)
00841         y2 = s2->coord.y;
00842
00843       if(y2<pymin)
00844         {
00845           //printf("\nClipped (2) y2 = %f to %f",y2,pymin);
00846           y2 = pymin;
00847           //return;
00848         }
00849       x2 = (e->c) - (e->b) * y2;
00850       if (((x1> pxmax) & (x2>pxmax)) | ((x1<pxmin)&(x2<pxmin)))
00851         {
00852           //printf("\nClipLine jumping out(3), x1 = %f, pxmin = %f, pxmax = %f",x1,pxmin,pxmax);
00853           return;
00854         }
00855       if(x1> pxmax)
00856         {       x1 = pxmax; y1 = (e->c - x1)/e->b;};
00857       if(x1<pxmin)
00858         {       x1 = pxmin; y1 = (e->c - x1)/e->b;};
00859       if(x2>pxmax)
00860         {       x2 = pxmax; y2 = (e->c - x2)/e->b;};
00861       if(x2<pxmin)
00862         {       x2 = pxmin; y2 = (e->c - x2)/e->b;};
00863     }
00864   else
00865     {
00866       x1 = pxmin;
00867       if (s1!=(Site *)NULL && s1->coord.x > pxmin)
00868         x1 = s1->coord.x;
00869       if(x1>pxmax)
00870         {
00871           //printf("\nClipped (3) x1 = %f to %f",x1,pxmin);
00872           //return;
00873           x1 = pxmax;
00874         }
00875       y1 = e->c - e->a * x1;
00876       x2 = pxmax;
00877       if (s2!=(Site *)NULL && s2->coord.x < pxmax)
00878         x2 = s2->coord.x;
00879       if(x2<pxmin)
00880         {
00881           //printf("\nClipped (4) x2 = %f to %f",x2,pxmin);
00882           //return;
00883           x2 = pxmin;
00884         }
00885       y2 = e->c - e->a * x2;
00886       if (((y1> pymax) & (y2>pymax)) | ((y1<pymin)&(y2<pymin)))
00887         {
00888           //printf("\nClipLine jumping out(6), y1 = %f, pymin = %f, pymax = %f",y2,pymin,pymax);
00889           return;
00890         }
00891       if(y1> pymax)
00892         {       y1 = pymax; x1 = (e->c - y1)/e->a;};
00893       if(y1<pymin)
00894         {       y1 = pymin; x1 = (e->c - y1)/e->a;};
00895       if(y2>pymax)
00896         {       y2 = pymax; x2 = (e->c - y2)/e->a;};
00897       if(y2<pymin)
00898         {       y2 = pymin; x2 = (e->c - y2)/e->a;};
00899     };
00900
00901   //printf("\nPushing line (%f,%f,%f,%f)",x1,y1,x2,y2);
00902   //fprintf(stdout, "Line with vertices (%f,%f) and (%f,%f)\n",
00903   //    e->reg[0]->coord.x, e->reg[1]->coord.x, e->reg[0]->coord.y, e->reg[1]->coord.y);
00904   pushGraphEdge(x1,y1,x2,y2,e->reg[0],e->reg[1]);
00905 }

char * fastjet::VoronoiDiagramGenerator::myalloc ( unsigned  n  )  [private]

Definition at line 724 of file Voronoi.cc.

References total_alloc.

Referenced by ELinitialize(), generateVoronoi(), getfree(), and PQinitialize().

00725 {
00726   char *t=0;
00727   t=(char*)malloc(n);
00728   total_alloc += n;
00729   return(t);
00730 }

int fastjet::VoronoiDiagramGenerator::right_of ( Halfedge el,
Point p
) [private]

Definition at line 431 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by ELleftbnd().

00432 {
00433   Edge *e;
00434   Site *topsite;
00435   int right_of_site, above, fast;
00436   double dxp, dyp, dxs, t1, t2, t3, yl;
00437
00438   e = el->ELedge;
00439   topsite = e->reg[1];
00440   right_of_site = p->x > topsite->coord.x;
00441   if(right_of_site && el->ELpm == le) return(1);
00442   if(!right_of_site && el->ELpm == re) return (0);
00443
00444   if (e->a == 1.0)
00445     {   dyp = p->y - topsite->coord.y;
00446     dxp = p->x - topsite->coord.x;
00447     fast = 0;
00448     if ((!right_of_site & (e->b<0.0)) | (right_of_site & (e->b>=0.0)) )
00449       { above = dyp>= e->b*dxp;
00450       fast = above;
00451       }
00452     else
00453       { above = p->x + p->y*e->b > e-> c;
00454       if(e->b<0.0) above = !above;
00455       if (!above) fast = 1;
00456       };
00457     if (!fast)
00458       { dxs = topsite->coord.x - (e->reg[0])->coord.x;
00459       above = e->b * (dxp*dxp - dyp*dyp) <
00460         dxs*dyp*(1.0+2.0*dxp/dxs + e->b*e->b);
00461       if(e->b<0.0) above = !above;
00462       };
00463     }
00464   else  /*e->b==1.0 */
00465     {   yl = e->c - e->a*p->x;
00466     t1 = p->y - yl;
00467     t2 = p->x - topsite->coord.x;
00468     t3 = yl - topsite->coord.y;
00469     above = t1*t1 > t2*t2 + t3*t3;
00470     };
00471   return (el->ELpm==le ? above : !above);
00472 }

Site * fastjet::VoronoiDiagramGenerator::rightreg ( Halfedge he  )  [private]

Definition at line 310 of file Voronoi.cc.

References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg.

Referenced by voronoi().

00310                                                     {
00311   if (he->ELedge == (Edge*) NULL)
00312     // if this halfedge has no edge, return the bottom site (whatever
00313     // that is)
00314     return bottomsite;
00315
00316   // if the ELpm field is zero, return the site 0 that this edge
00317   // bisects, otherwise return site number 1
00318   return (he->ELpm == le)
00319     ? he->ELedge->reg[re]
00320     : he->ELedge->reg[le];
00321 }

Edge * fastjet::VoronoiDiagramGenerator::bisect ( Site s1,
Site s2
) [private]

Definition at line 336 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::edgenbr, efl, fastjet::Edge::ep, getfree(), nedges, ref(), fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00336                                                         {
00337   double dx,dy,adx,ady;
00338   Edge *newedge;
00339
00340   newedge = (Edge*) getfree(&efl);
00341
00342   newedge->reg[0] = s1; //store the sites that this edge is bisecting
00343   newedge->reg[1] = s2;
00344   ref(s1);
00345   ref(s2);
00346
00347   // to begin with, there are no endpoints on the bisector - it goes
00348   // to infinity
00349   newedge->ep[0] = (Site*) NULL;
00350   newedge->ep[1] = (Site*) NULL;
00351
00352   // get the difference in x dist between the sites
00353   dx = s2->coord.x - s1->coord.x;
00354   dy = s2->coord.y - s1->coord.y;
00355
00356   // make sure that the difference is positive
00357   adx = dx>0 ? dx : -dx;
00358   ady = dy>0 ? dy : -dy;
00359
00360   // get the slope of the line
00361   newedge->c = (double)(s1->coord.x * dx + s1->coord.y * dy
00362                         + (dx*dx + dy*dy)*0.5);
00363
00364   if (adx>ady){
00365     //set formula of line, with x fixed to 1
00366     newedge->a = 1.0; newedge->b = dy/dx; newedge->c /= dx;
00367   } else {
00368     //set formula of line, with y fixed to 1
00369     newedge->b = 1.0; newedge->a = dx/dy; newedge->c /= dy;
00370   }
00371
00372   newedge->edgenbr = nedges;
00373   nedges++;
00374
00375   return newedge;
00376 }

double fastjet::VoronoiDiagramGenerator::dist ( Site s,
Site t
) [private]

Definition at line 490 of file Voronoi.cc.

References fastjet::Site::coord, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00491 {
00492   double dx,dy;
00493   dx = s->coord.x - t->coord.x;
00494   dy = s->coord.y - t->coord.y;
00495   return (double)(sqrt(dx*dx + dy*dy));
00496 }

Site * fastjet::VoronoiDiagramGenerator::intersect ( Halfedge el1,
Halfedge el2,
Point p = 0
) [private]

Definition at line 382 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, getfree(), le, re, fastjet::Site::refcnt, fastjet::Edge::reg, sfl, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00382                                                                               {
00383   Edge *e1,*e2, *e;
00384   Halfedge *el;
00385   double d, xint, yint;
00386   int right_of_site;
00387   Site *v;
00388
00389   e1 = el1->ELedge;
00390   e2 = el2->ELedge;
00391   if ((e1==(Edge*)NULL) || (e2==(Edge*)NULL))
00392     return ((Site*) NULL);
00393
00394   // if the two edges bisect the same parent, return null
00395   if (e1->reg[1] == e2->reg[1])
00396     return (Site*) NULL;
00397
00398   d = e1->a * e2->b - e1->b * e2->a;
00399   if (-1.0e-10<d && d<1.0e-10)
00400     return (Site*) NULL;
00401
00402   xint = (e1->c*e2->b - e2->c*e1->b)/d;
00403   yint = (e2->c*e1->a - e1->c*e2->a)/d;
00404
00405   if( (e1->reg[1]->coord.y < e2->reg[1]->coord.y) ||
00406       ((e1->reg[1]->coord.y == e2->reg[1]->coord.y) &&
00407        (e1->reg[1]->coord.x <  e2->reg[1]->coord.x)) ){
00408     el = el1;
00409     e = e1;
00410   } else {
00411     el = el2;
00412     e = e2;
00413   }
00414
00415   right_of_site = xint >= e->reg[1]->coord.x;
00416   if ((right_of_site && el->ELpm == le) || (!right_of_site && el->ELpm == re))
00417     return (Site*) NULL;
00418
00419   // create a new site at the point of intersection - this is a new
00420   // vector event waiting to happen
00421   v = (Site*) getfree(&sfl);
00422   v->refcnt = 0;
00423   v->coord.x = xint;
00424   v->coord.y = yint;
00425   return v;
00426 }

void fastjet::VoronoiDiagramGenerator::out_bisector ( Edge e  )  [private]

Definition at line 741 of file Voronoi.cc.

00742 {
00743
00744
00745 }

void fastjet::VoronoiDiagramGenerator::out_ep ( Edge e  )  [private]

Definition at line 748 of file Voronoi.cc.

00749 {
00750
00751
00752 }

void fastjet::VoronoiDiagramGenerator::out_vertex ( Site v  )  [private]

Definition at line 754 of file Voronoi.cc.

Referenced by makevertex().

00755 {
00756
00757 }

Site * fastjet::VoronoiDiagramGenerator::nextone (  )  [private]

Definition at line 1046 of file Voronoi.cc.

References nsites, siteidx, and sites.

Referenced by voronoi().

01047 {
01048   Site *s;
01049   if(siteidx < nsites)
01050     {
01051       s = &sites[siteidx];
01052       siteidx += 1;
01053       return(s);
01054     }
01055   else
01056     return( (Site *)NULL);
01057 }

void fastjet::VoronoiDiagramGenerator::pushGraphEdge ( double  x1,
double  y1,
double  x2,
double  y2,
Site s1,
Site s2
) [private]

Definition at line 708 of file Voronoi.cc.

References allEdges, fastjet::GraphEdge::next, fastjet::GraphEdge::point1, fastjet::GraphEdge::point2, fastjet::Site::sitenbr, fastjet::GraphEdge::x1, fastjet::GraphEdge::x2, fastjet::GraphEdge::y1, and fastjet::GraphEdge::y2.

Referenced by clip_line().

00710 {
00711   GraphEdge* newEdge = new GraphEdge;
00712   newEdge->next = allEdges;
00713   allEdges = newEdge;
00714   newEdge->x1 = x1;
00715   newEdge->y1 = y1;
00716   newEdge->x2 = x2;
00717   newEdge->y2 = y2;
00718
00719   newEdge->point1 = s1->sitenbr;
00720   newEdge->point2 = s2->sitenbr;
00721 }

void fastjet::VoronoiDiagramGenerator::openpl (  )  [private]

Definition at line 735 of file Voronoi.cc.

Referenced by plotinit().

00735 {}

void fastjet::VoronoiDiagramGenerator::circle ( double  x,
double  y,
double  radius
) [private]

Definition at line 736 of file Voronoi.cc.

Referenced by out_site().

00736 {}

void fastjet::VoronoiDiagramGenerator::range ( double  minX,
double  minY,
double  maxX,
double  maxY
) [private]

Definition at line 737 of file Voronoi.cc.

Referenced by plotinit().

00737 {}


Member Data Documentation

vector<Point>* fastjet::VoronoiDiagramGenerator::parent_sites

Definition at line 216 of file Voronoi.hh.

Referenced by generateVoronoi(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::n_parent_sites

Definition at line 217 of file Voronoi.hh.

Referenced by generateVoronoi().

Halfedge** fastjet::VoronoiDiagramGenerator::ELhash [private]

Definition at line 226 of file Voronoi.hh.

Referenced by cleanup(), ELgethash(), ELinitialize(), ELleftbnd(), and VoronoiDiagramGenerator().

Freelist fastjet::VoronoiDiagramGenerator::hfl [private]

Definition at line 278 of file Voronoi.hh.

Referenced by ELgethash(), ELinitialize(), and HEcreate().

Halfedge* fastjet::VoronoiDiagramGenerator::ELleftend [private]

Definition at line 279 of file Voronoi.hh.

Referenced by ELinitialize(), ELleftbnd(), and voronoi().

Halfedge * fastjet::VoronoiDiagramGenerator::ELrightend [private]

Definition at line 279 of file Voronoi.hh.

Referenced by ELinitialize(), ELleftbnd(), and voronoi().

int fastjet::VoronoiDiagramGenerator::ELhashsize [private]

Definition at line 280 of file Voronoi.hh.

Referenced by ELgethash(), ELinitialize(), and ELleftbnd().

int fastjet::VoronoiDiagramGenerator::triangulate [private]

Definition at line 282 of file Voronoi.hh.

Referenced by generateVoronoi(), and out_site().

int fastjet::VoronoiDiagramGenerator::sorted [private]

Definition at line 282 of file Voronoi.hh.

Referenced by generateVoronoi().

int fastjet::VoronoiDiagramGenerator::plot [private]

Definition at line 282 of file Voronoi.hh.

Referenced by generateVoronoi(), and out_site().

int fastjet::VoronoiDiagramGenerator::debug [private]

Definition at line 282 of file Voronoi.hh.

Referenced by generateVoronoi(), and out_site().

double fastjet::VoronoiDiagramGenerator::xmin [private]

Definition at line 283 of file Voronoi.hh.

Referenced by ELleftbnd(), generateVoronoi(), geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::xmax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by generateVoronoi(), geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::ymin [private]

Definition at line 283 of file Voronoi.hh.

Referenced by generateVoronoi(), geominit(), plotinit(), and PQbucket().

double fastjet::VoronoiDiagramGenerator::ymax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by generateVoronoi(), geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::deltax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by ELleftbnd(), and geominit().

double fastjet::VoronoiDiagramGenerator::deltay [private]

Definition at line 283 of file Voronoi.hh.

Referenced by geominit(), and PQbucket().

Site* fastjet::VoronoiDiagramGenerator::sites [private]

Definition at line 285 of file Voronoi.hh.

Referenced by cleanup(), generateVoronoi(), nextone(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::nsites [private]

Definition at line 286 of file Voronoi.hh.

Referenced by generateVoronoi(), geominit(), and nextone().

int fastjet::VoronoiDiagramGenerator::siteidx [private]

Definition at line 287 of file Voronoi.hh.

Referenced by generateVoronoi(), nextone(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::sqrt_nsites [private]

Definition at line 288 of file Voronoi.hh.

Referenced by ELinitialize(), geominit(), getfree(), and PQinitialize().

int fastjet::VoronoiDiagramGenerator::nvertices [private]

Definition at line 289 of file Voronoi.hh.

Referenced by geominit(), and makevertex().

Freelist fastjet::VoronoiDiagramGenerator::sfl [private]

Definition at line 290 of file Voronoi.hh.

Referenced by deref(), generateVoronoi(), and intersect().

Site* fastjet::VoronoiDiagramGenerator::bottomsite [private]

Definition at line 291 of file Voronoi.hh.

Referenced by leftreg(), rightreg(), and voronoi().

int fastjet::VoronoiDiagramGenerator::nedges [private]

Definition at line 293 of file Voronoi.hh.

Referenced by bisect(), and geominit().

Freelist fastjet::VoronoiDiagramGenerator::efl [private]

Definition at line 294 of file Voronoi.hh.

Referenced by bisect(), endpoint(), and geominit().

int fastjet::VoronoiDiagramGenerator::PQhashsize [private]

Definition at line 295 of file Voronoi.hh.

Referenced by PQbucket(), and PQinitialize().

Halfedge* fastjet::VoronoiDiagramGenerator::PQhash [private]

Definition at line 296 of file Voronoi.hh.

Referenced by cleanup(), PQ_min(), PQdelete(), PQextractmin(), PQinitialize(), PQinsert(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::PQcount [private]

Definition at line 297 of file Voronoi.hh.

Referenced by PQdelete(), PQempty(), PQextractmin(), PQinitialize(), and PQinsert().

int fastjet::VoronoiDiagramGenerator::PQmin [private]

Definition at line 298 of file Voronoi.hh.

Referenced by PQ_min(), PQbucket(), PQextractmin(), and PQinitialize().

int fastjet::VoronoiDiagramGenerator::ntry [private]

Definition at line 300 of file Voronoi.hh.

Referenced by ELleftbnd().

int fastjet::VoronoiDiagramGenerator::totalsearch [private]

Definition at line 300 of file Voronoi.hh.

Referenced by ELleftbnd().

double fastjet::VoronoiDiagramGenerator::pxmin [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pxmax [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pymin [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pymax [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::cradius [private]

Definition at line 301 of file Voronoi.hh.

Referenced by out_site(), and plotinit().

int fastjet::VoronoiDiagramGenerator::total_alloc [private]

Definition at line 302 of file Voronoi.hh.

Referenced by myalloc().

double fastjet::VoronoiDiagramGenerator::borderMinX [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line(), and generateVoronoi().

double fastjet::VoronoiDiagramGenerator::borderMaxX [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line(), and generateVoronoi().

double fastjet::VoronoiDiagramGenerator::borderMinY [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line(), and generateVoronoi().

double fastjet::VoronoiDiagramGenerator::borderMaxY [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line(), and generateVoronoi().

FreeNodeArrayList* fastjet::VoronoiDiagramGenerator::allMemoryList [private]

Definition at line 306 of file Voronoi.hh.

Referenced by cleanup(), VoronoiDiagramGenerator(), and ~VoronoiDiagramGenerator().

FreeNodeArrayList* fastjet::VoronoiDiagramGenerator::currentMemoryBlock [private]

Definition at line 307 of file Voronoi.hh.

Referenced by cleanup(), getfree(), and VoronoiDiagramGenerator().

GraphEdge* fastjet::VoronoiDiagramGenerator::allEdges [private]

Definition at line 309 of file Voronoi.hh.

Referenced by cleanupEdges(), pushGraphEdge(), and VoronoiDiagramGenerator().

GraphEdge* fastjet::VoronoiDiagramGenerator::iteratorEdges [private]

Definition at line 310 of file Voronoi.hh.

Referenced by VoronoiDiagramGenerator().

double fastjet::VoronoiDiagramGenerator::minDistanceBetweenSites [private]

Definition at line 312 of file Voronoi.hh.

Referenced by generateVoronoi(), and VoronoiDiagramGenerator().


The documentation for this class was generated from the following files:
Generated on Tue Dec 18 17:05:57 2007 for fastjet by  doxygen 1.5.2
