#include <iostream>
#include <sstream>
#include <vector>
#include "KtJet/KtEvent.h"
#include "KtJet/KtLorentzVector.h"

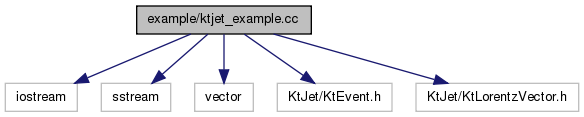

Include dependency graph for ktjet_example.cc:

Functions
void	print_jets (const vector< KtLorentzVector > &)
int	main (int argc, char **argv)
	an example program showing how the fastjet_example program would be translated for use with ktjet.

Function Documentation

int main	(	int	argc,
		char **	argv
	)

an example program showing how the fastjet_example program would be translated for use with ktjet.

Definition at line 24 of file ktjet_example.cc.

References print_jets().

                                  {

  vector<KtLorentzVector> input_particles;

  // read in input particles
  double px, py , pz, E;
  while (cin >> px >> py >> pz >> E) {
    // create a KtLorentzVector with these components and put it onto
    // back of the input_particles vector
    input_particles.push_back(KtLorentzVector(px,py,pz,E));
  }

  // run the inclusive jet clustering in PP mode using the covariant
  // E-scheme for recobination (type=4, angle=2, recom=1, rparameter=1.0)
  double Rparam = 1.0;
  KtEvent clust_seq(input_particles,4,2,1,Rparam);

  // extract the inclusive jets with pt > 5 GeV, sorted by pt
  double ptmin = 5.0;
  vector<KtLorentzVector> temporary_jets = clust_seq.getJetsPt();
  vector<KtLorentzVector> inclusive_jets;
  for (unsigned int i = 0; i < temporary_jets.size(); i++) {
    if (temporary_jets[i].perp() >= ptmin) {
      inclusive_jets.push_back(temporary_jets[i]);}
    else {break;}
  }

  // print them out
  cout << "Printing inclusive jets with pt > "<< ptmin<<" GeV\n";
  cout << "---------------------------------------\n";
  print_jets(inclusive_jets);
  cout << endl;

  // Extract the exclusive jets with dcut = 25 GeV^2.
  double dcut = 25.0;
  // Note that KtJet's definition of dij differs from Ellis&Soper (and
  // fastjet) in the case where Rparam /= 1.0 (though in this case one
  // should perhaps not be using the exclusive kt algorithm in any case).
  clust_seq.findJetsD(dcut * Rparam*Rparam);
  vector<KtLorentzVector> exclusive_jets = clust_seq.getJetsPt();

  // print them out
  cout << "Printing exclusive jets with dcut = "<< dcut<<" GeV^2\n";
  cout << "--------------------------------------------\n";
  print_jets(exclusive_jets);


}

void print_jets ( const vector< KtLorentzVector > & jets )

Definition at line 76 of file ktjet_example.cc.

References d0::inline_maths::phi().

                                                       {

  // label the columns
  printf("%5s %15s %15s %15s %15s\n","jet #", "rapidity",
         "phi", "pt", "n constituents");

  // print out the details for each jet
  for (unsigned int i = 0; i < jets.size(); i++) {
    int n_constituents = jets[i].getConstituents().size();
    double phi = jets[i].phi();
    if (phi < 0.0) {phi += 6.283185307179586476925286766559005768394;}
    printf("%5u %15.8f %15.8f %15.8f %8u\n",
           i, jets[i].rapidity(), phi,
           jets[i].perp(), n_constituents);
  }

}
