#include <TrackJetPlugin.hh>

Inheritance diagram for TrackJetPlugin:

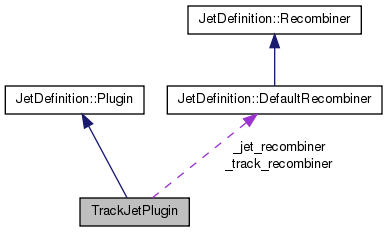

Collaboration diagram for TrackJetPlugin:

Public Member Functions
	TrackJetPlugin (double radius, RecombinationScheme jet_recombination_scheme=pt_scheme, RecombinationScheme track_recombination_scheme=pt_scheme)
	Main constructor for the TrackJet Plugin class.
	TrackJetPlugin (const TrackJetPlugin &plugin)
	copy constructor
virtual std::string	description () const
	return a textual description of the jet-definition implemented in this plugin
virtual void	run_clustering (ClusterSequence &) const
	given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence: plugin_do_ij_recombination(...) plugin_do_iB_recombination(...)
virtual double	R () const
	the plugin mechanism's standard way of accessing the jet radius here we return the R of the last alg in the list
Private Attributes
double	_radius
double	_radius2
JetDefinition::DefaultRecombiner	_jet_recombiner
JetDefinition::DefaultRecombiner	_track_recombiner

Detailed Description

Definition at line 44 of file TrackJetPlugin.hh.

Constructor & Destructor Documentation

TrackJetPlugin::TrackJetPlugin	(	double	radius,
		RecombinationScheme	jet_recombination_scheme = `pt_scheme`,
		RecombinationScheme	track_recombination_scheme = `pt_scheme`
	)		`[inline]`

Main constructor for the TrackJet Plugin class.

The argument is an initialised list of jet algorithms

Parameters:

_radius	the distance at which point a particle is no longer recombied into the jet
jet_recombination_scheme	the recombination scheme used to sum the 4-vecors inside the jet
track_recombination_scheme	the recombination scheme used to sum the 4-vecors when accumulating track into a the jet Both recombiners are defaulted to pt_scheme recomb as for the Rivet implementation.

Definition at line 58 of file TrackJetPlugin.hh.

References _jet_recombiner, _radius, _radius2, and _track_recombiner.

                                                                           {
    _radius  = radius;
    _radius2 = radius*radius;
    _jet_recombiner = JetDefinition::DefaultRecombiner(jet_recombination_scheme);
    _track_recombiner = JetDefinition::DefaultRecombiner(track_recombination_scheme);
  }

TrackJetPlugin::TrackJetPlugin ( const TrackJetPlugin & plugin ) [inline]

copy constructor

Definition at line 68 of file TrackJetPlugin.hh.

                                                 {
    *this = plugin;
  }

Member Function Documentation

string TrackJetPlugin::description ( ) const [virtual]

return a textual description of the jet-definition implemented in this plugin

Implements JetDefinition::Plugin.

Definition at line 84 of file GhostedAreaSpec.cc.

                                          {

  ostringstream ostr;
  ostr << "ghosts of area " << actual_ghost_area()
       << " (had requested " << ghost_area() << ")"
       << ", placed up to y = " << ghost_maxrap()
       << ", scattered wrt to perfect grid by (rel) " << grid_scatter()
       << ", mean_ghost_kt = " << mean_ghost_kt()
       << ", rel kt_scatter =  " << kt_scatter()
       << ", n repetitions of ghost distributions =  " << repeat();
  return ostr.str();
}

virtual double TrackJetPlugin::R ( ) const [inline, virtual]

the plugin mechanism's standard way of accessing the jet radius here we return the R of the last alg in the list

Implements JetDefinition::Plugin.

Definition at line 78 of file TrackJetPlugin.hh.

References _radius.

{return _radius;}

void TrackJetPlugin::run_clustering ( ClusterSequence & ) const [virtual]

given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence:

plugin_do_ij_recombination(...)
plugin_do_iB_recombination(...)

Implements JetDefinition::Plugin.

Definition at line 65 of file TrackJetPlugin.cc.

References ClusterSequence::jets(), ClusterSequence::plugin_record_iB_recombination(), and ClusterSequence::plugin_record_ij_recombination().

                                                                     {
  // we first need to sort the particles in pt
  vector<TrackJetParticlePtr> particle_list;

  const vector<PseudoJet> & jets = clust_seq.jets();
  int index=0;
  for (vector<PseudoJet>::const_iterator mom_it = jets.begin(); mom_it != jets.end(); mom_it++){
    particle_list.push_back(TrackJetParticlePtr(index, mom_it->perp2()));
    index++;
  }

  // sort the particles into decreasing pt
  sort(particle_list.begin(), particle_list.end());


  // if we're using a recombination scheme different from the E scheme,
  // we first need to update the particles' energy so that they
  // are massless (and rapidity = pseudorapidity)
  vector<PseudoJet> tuned_particles = clust_seq.jets();
  vector<PseudoJet> tuned_tracks = clust_seq.jets();
  for (vector<PseudoJet>::iterator pit = tuned_particles.begin();
       pit != tuned_particles.end(); pit++)
    _jet_recombiner.preprocess(*pit);
  for (vector<PseudoJet>::iterator pit = tuned_tracks.begin();
       pit != tuned_tracks.end(); pit++)
    _track_recombiner.preprocess(*pit);


  // we'll just need the particle indices for what follows
  list<int> sorted_pt_index;
  for (vector<TrackJetParticlePtr>::iterator mom_it = particle_list.begin();
       mom_it != particle_list.end(); mom_it++)
    sorted_pt_index.push_back(mom_it->index);

  // now start building the jets
  while (sorted_pt_index.size()){
    // note that here 'track' refers to the direction we're using to test if a particle belongs to the jet
    // 'jet' refers to the momentum of the jet
    // the difference between the two is in the recombination scheme used to compute the sum of 4-vectors
    int current_jet_index = sorted_pt_index.front();
    PseudoJet current_jet   = tuned_particles[current_jet_index];
    PseudoJet current_track = tuned_tracks[current_jet_index];

    // remove the first particle from the available ones
    list<int>::iterator index_it = sorted_pt_index.begin();
    sorted_pt_index.erase(index_it);

    // start browsing the remaining ones
    index_it = sorted_pt_index.begin();
    while (index_it != sorted_pt_index.end()){
      const PseudoJet & current_particle = tuned_particles[*index_it];
      const PseudoJet & current_particle_track = tuned_tracks[*index_it];

      // check if the particle is within a distance R of the jet
      double distance2 = current_track.plain_distance(current_particle_track);
      if (distance2 <= _radius2){
        // add the particle to the jet
        PseudoJet new_track;
        PseudoJet new_jet;
        _jet_recombiner.recombine(current_jet, current_particle, new_jet);
        _track_recombiner.recombine(current_track, current_particle_track, new_track);

        int new_jet_index;
        clust_seq.plugin_record_ij_recombination(current_jet_index, *index_it, distance2, new_jet, new_jet_index);

        current_jet = new_jet;
        current_track = new_track;
        current_jet_index = new_jet_index;

        // particle has been clustered so remove it from the list
        sorted_pt_index.erase(index_it);

        // and don't forget to start again from the beginning
        //  as the jet axis may have changed
        index_it = sorted_pt_index.begin();
      } else {
        index_it++;
      }
    }

    // now we have a final jet, so cluster it with the beam
    clust_seq.plugin_record_iB_recombination(current_jet_index, _radius2);
  }

}
