ClusterSequenceVoronoiArea Class Reference

Handle the computation of Voronoi jet area. More...

#include <ClusterSequenceVoronoiArea.hh>

Inheritance diagram for ClusterSequenceVoronoiArea:

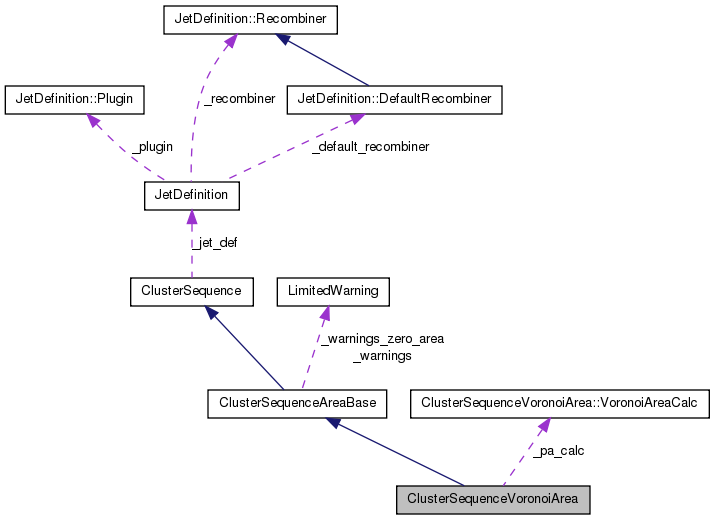

Collaboration diagram for ClusterSequenceVoronoiArea:

List of all members.

Classes
class	VoronoiAreaCalc
	class for carrying out a voronoi area calculation on a set of initial vectors More...
Public Member Functions
template<class L >
	ClusterSequenceVoronoiArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const VoronoiAreaSpec &spec=VoronoiAreaSpec(), const bool &writeout_combinations=false)
	template ctor
	~ClusterSequenceVoronoiArea ()
	default dtor
virtual double	area (const PseudoJet &jet) const
	return the area associated with the given jet
virtual PseudoJet	area_4vector (const PseudoJet &jet) const
	return a 4-vector area associated with the given jet -- stricly this is not the exact 4-vector area, but rather an approximation made of sums of centres of all Voronoi cells in jet, each contributing with a normalisation equal to the area of the cell
virtual double	area_error (const PseudoJet &jet) const
	return the error of the area associated with the given jet (0 by definition for a voronoi area)
Private Member Functions
void	_initializeVA ()
	initialisation of the Voronoi Area
Private Attributes
std::vector< double >	_voronoi_area
	vector containing the result
std::vector< PseudoJet >	_voronoi_area_4vector
	vector containing approx 4-vect areas
VoronoiAreaCalc *	_pa_calc
	area calculator
double	_effective_Rfact
	effective radius

---

Detailed Description

Handle the computation of Voronoi jet area.

Definition at line 46 of file ClusterSequenceVoronoiArea.hh.

---

Constructor & Destructor Documentation

template<class L >

ClusterSequenceVoronoiArea::ClusterSequenceVoronoiArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const VoronoiAreaSpec &	spec = VoronoiAreaSpec(),
		const bool &	writeout_combinations = false
	)

template ctor

template constructor need to be specified in the header!

Parameters:

pseudojet	list of jets (template type)
jet_def	jet definition
effective_Rfact	effective radius
writeout_combinations	??????

Definition at line 99 of file ClusterSequenceVoronoiArea.hh.

                                     :
  _effective_Rfact(spec.effective_Rfact()) {

  // transfer the initial jets (type L) into our own array
  _transfer_input_jets(pseudojets);

  // run the clustering
  _initialise_and_run(jet_def,writeout_combinations);

  // the jet clustering's already been done, now worry about areas...
  _initializeVA();
}

ClusterSequenceVoronoiArea::~ClusterSequenceVoronoiArea

(

)

default dtor

Definition at line 313 of file ClusterSequenceVoronoiArea.cc.

                                                        {
  delete _pa_calc;
}

---

Member Function Documentation

void ClusterSequenceVoronoiArea::_initializeVA

(

)

[private]

initialisation of the Voronoi Area

Definition at line 271 of file ClusterSequenceVoronoiArea.cc.

References VAC.

                                                {
  // run the VAC on our original particles
  _pa_calc = new VAC(_jets.begin(),
                     _jets.begin()+n_particles(),
                     _effective_Rfact*_jet_def.R());

  // transfer the areas to our local structure
  //  -- first the initial ones
  _voronoi_area.reserve(2*n_particles());
  for (unsigned int i=0; i<n_particles(); i++) {
    _voronoi_area.push_back(_pa_calc->area(i));
    // make a stab at a 4-vector area
    if (_jets[i].perp2() > 0) {
      _voronoi_area_4vector.push_back((_pa_calc->area(i)/_jets[i].perp())
                                      * _jets[i]);
    } else {
      // not sure what to do here -- just put zero (it won't be meaningful
      // anyway)
      _voronoi_area_4vector.push_back(PseudoJet(0.0,0.0,0.0,0.0));
    }
  }

  //  -- then the combined areas that arise from the clustering
  for (unsigned int i = n_particles(); i < _history.size(); i++) {
    double area;
    PseudoJet area_4vect;
    if (_history[i].parent2 >= 0) {
      area = _voronoi_area[_history[i].parent1] +
             _voronoi_area[_history[i].parent2];
      area_4vect = _voronoi_area_4vector[_history[i].parent1] +
                   _voronoi_area_4vector[_history[i].parent2];
    } else {
      area = _voronoi_area[_history[i].parent1];
      area_4vect = _voronoi_area_4vector[_history[i].parent1];
    }
    _voronoi_area.push_back(area);
    _voronoi_area_4vector.push_back(area_4vect);
  }

}

virtual double ClusterSequenceVoronoiArea::area

(

const PseudoJet &

jet

)

const [inline, virtual]

return the area associated with the given jet

Reimplemented from ClusterSequenceAreaBase.

Definition at line 63 of file ClusterSequenceVoronoiArea.hh.

References _voronoi_area.

Referenced by ClusterSequencePassiveArea::_initialise_and_run_PA().

                                                          {
    return _voronoi_area[jet.cluster_hist_index()];};

virtual PseudoJet ClusterSequenceVoronoiArea::area_4vector

(

const PseudoJet &

jet

)

const [inline, virtual]

return a 4-vector area associated with the given jet -- stricly this is not the exact 4-vector area, but rather an approximation made of sums of centres of all Voronoi cells in jet, each contributing with a normalisation equal to the area of the cell

Reimplemented from ClusterSequenceAreaBase.

Definition at line 70 of file ClusterSequenceVoronoiArea.hh.

References _voronoi_area_4vector.

Referenced by ClusterSequencePassiveArea::_initialise_and_run_PA().

                                                                     {
    return _voronoi_area_4vector[jet.cluster_hist_index()];};

virtual double ClusterSequenceVoronoiArea::area_error

(

const PseudoJet &

jet

)

const [inline, virtual]

return the error of the area associated with the given jet (0 by definition for a voronoi area)

Reimplemented from ClusterSequenceAreaBase.

Definition at line 75 of file ClusterSequenceVoronoiArea.hh.

                                                                {
    return 0.0;};

---

Member Data Documentation

double ClusterSequenceVoronoiArea::_effective_Rfact [private]

effective radius

Definition at line 90 of file ClusterSequenceVoronoiArea.hh.

VoronoiAreaCalc* ClusterSequenceVoronoiArea::_pa_calc [private]

area calculator

Definition at line 89 of file ClusterSequenceVoronoiArea.hh.

std::vector<double> ClusterSequenceVoronoiArea::_voronoi_area [private]

vector containing the result

Definition at line 87 of file ClusterSequenceVoronoiArea.hh.

Referenced by area().

std::vector<PseudoJet> ClusterSequenceVoronoiArea::_voronoi_area_4vector [private]

vector containing approx 4-vect areas

Definition at line 88 of file ClusterSequenceVoronoiArea.hh.

Referenced by area_4vector().

---

The documentation for this class was generated from the following files:

• include/fastjet/ClusterSequenceVoronoiArea.hh
• src/ClusterSequenceVoronoiArea.cc
